Validator

class imgreg.models.validator.solver.Validator(img: Optional[numpy.ndarray] = None, ref_img: Optional[numpy.ndarray] = None)[source]

Implements a validator model for image comparison.

Parameters
imgnumpy.ndarray

The input image (one color channel only).

ref_imgnumpy.ndarray

The reference image (one color channel only).

Notes

The model implements the following dependency graph to construct it’s Parameters.

// dependencies digraph { IMG [shape=box] ABSOLUTE_DIFFERENCE_IMG [shape=box] NORM_REL_L2 [shape=oval] SQUARED_DIFFERENCE_IMG [shape=box] REF_IMG [shape=box] REF_IMG -> ABSOLUTE_DIFFERENCE_IMG IMG -> ABSOLUTE_DIFFERENCE_IMG REF_IMG -> NORM_REL_L2 IMG -> NORM_REL_L2 REF_IMG -> SQUARED_DIFFERENCE_IMG IMG -> SQUARED_DIFFERENCE_IMG }

The Parameters are documented in params.

Examples

We can visualize the internal ImageParameters of the model as follows:

import numpy as np
import imgreg.data as data
from imgreg.models.validator import Validator
from imgreg.util.methods import ImageMethods

ref_img = np.array(data.ref_img())

# modify the image using an affine transformation
img = ImageMethods.compute_rts(ref_img, angle=2, translation=(6, 2))

# Create the model:
val = Validator(img, ref_img)

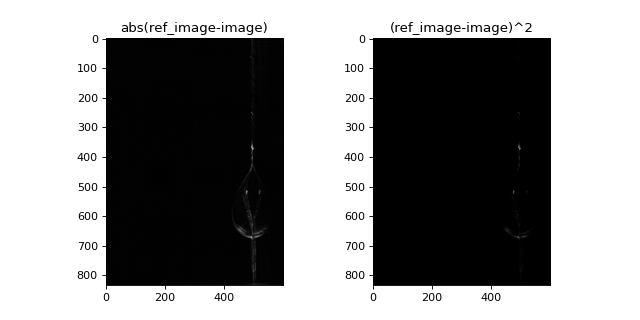

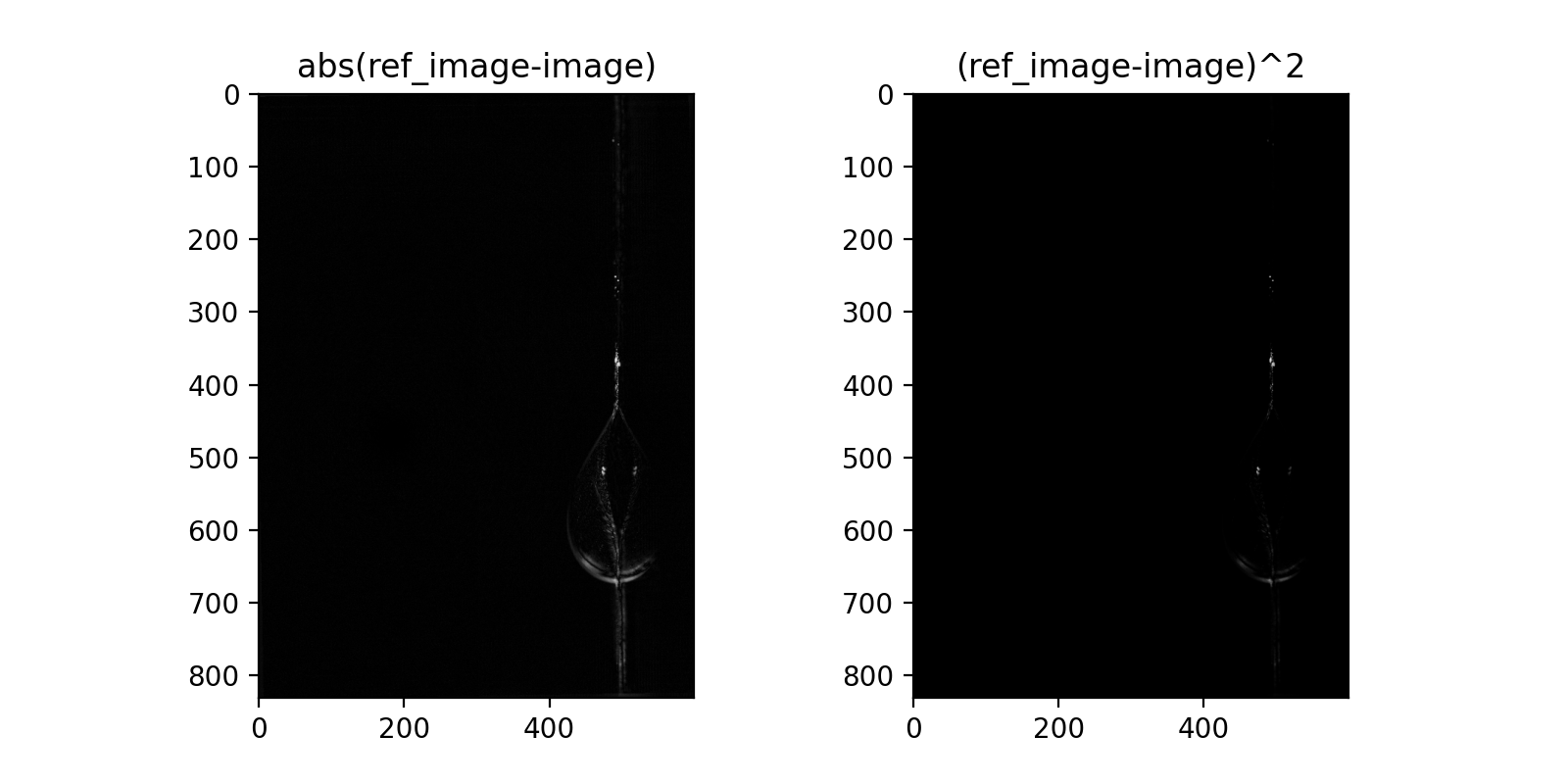

# The ImageParameters of the model have matplotlib support via the display function:
val.display([val.ABSOLUTE_DIFFERENCE_IMG, val.SQUARED_DIFFERENCE_IMG])

# Increase the overlap to the reference image
val.IMG.value = ImageMethods.compute_rts(ref_img, angle=1, translation=(1, 2))

# Note how the difference images show less pronounced differences with increased overlap
val.display([val.ABSOLUTE_DIFFERENCE_IMG, val.SQUARED_DIFFERENCE_IMG])

(Source code)

If we simply want to create a model and access the recovered values we first setup a model:

>>> import numpy as np
>>> import imgreg.data as data
>>> from imgreg.models.validator import Validator
>>> from imgreg.util.methods import ImageMethods
>>> ref_img = np.array(data.ref_img())
>>> img = ImageMethods.compute_rts(ref_img, angle=2, translation=(6,2))
>>> val = Validator(img, ref_img)

Calculate the relative norm of difference between the images.

>>> val.NORM_REL_L2.value
0.4875079942792...

Note how this value approaches zero, as the image increase in their overlap:

>>> val.IMG.value = ImageMethods.compute_rts(ref_img, angle=1, translation=(1,2))
>>> val[ValidatorParams.NORM_REL_L2].value
0.3942652180108...

Methods

__init__([img, ref_img])

Initialize self.

display(param_list[, title])

Fancy plot functionality for registered ImageParameters.

dot_graph([node_args_func])

Return a dot graph representation of the solver model.
